Animations

hofmann can render multi-frame trajectories as GIF or MP4 animations using render_animation(). The same per-frame rendering pipeline used for static output is applied to each frame, so all visual options (bonds, polyhedra, colouring, styles) work identically.

Basic usage

Build a scene from a trajectory and call render_animation():

from ase.io import read
from hofmann import StructureScene

traj = read("trajectory.traj", index=":")
scene = StructureScene.from_ase(traj)
scene.render_animation("output.gif")

The output format is determined by the file extension — .gif for GIF or .mp4 for MP4. Animation rendering requires the animation optional extra:

pip install "hofmann[animation]"

The examples on this page use ASE for trajectory loading, which requires the ase extra:

pip install "hofmann[ase]"

Frame selection

By default all frames are rendered. Use the frames parameter to select a subset:

# Every 5th frame:
scene.render_animation("output.gif", frames=range(0, 100, 5))

# Specific frames:
scene.render_animation("output.gif", frames=[0, 10, 20, 50])

Resolution and size

Control the output resolution with dpi and figsize:

scene.render_animation(
    "output.gif",
    fps=10,               # default: 30
    dpi=100,              # default: 150
    figsize=(6.0, 6.0),   # default: (5.0, 5.0)
)

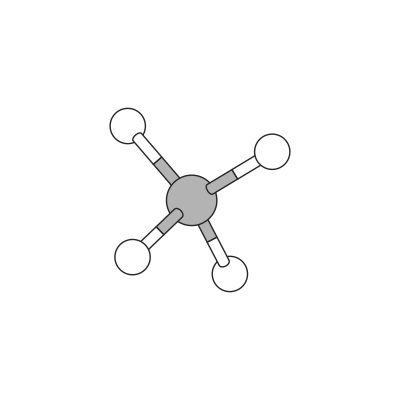

Example: CH₄ vibration

A vibrating methane molecule styled to match the Getting Started example:

from ase.io import read
from hofmann import AtomStyle, BondSpec, StructureScene

traj = read("ch4_md.traj", index=":")

bonds = [BondSpec(species=("C", "H"), max_length=1.5, radius=0.055, colour=1.0)]
atom_styles = {
    "C": AtomStyle(radius=0.5, colour=0.7),
    "H": AtomStyle(radius=0.35, colour=1.0),
}

scene = StructureScene.from_ase(traj, bond_specs=bonds, atom_styles=atom_styles)
scene.render_animation("ch4_md.gif", fps=15, dpi=100, figsize=(4, 4))

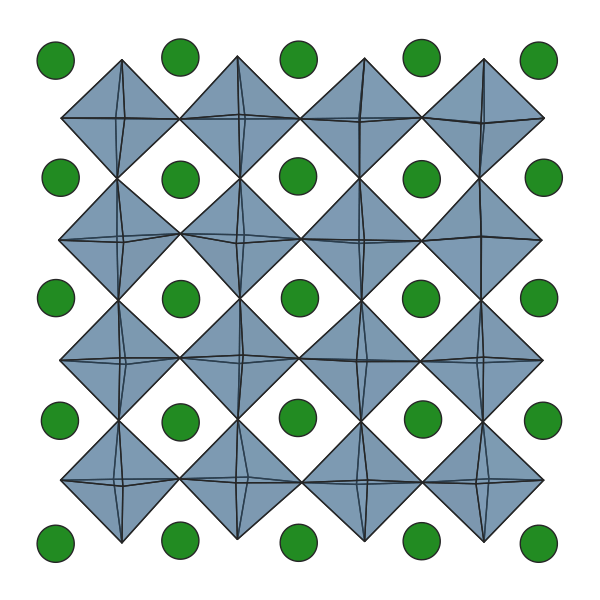

Example: SrTiO₃ perovskite MD

A single octahedral layer from a 4x4x4 SrTiO₃ supercell at 1000 K. The trajectory has been pre-filtered to one Sr plane, one Ti plane, and their coordinating O. The hide_vertices option on the polyhedron spec hides the oxygen atoms to emphasise the polyhedral network:

from ase.io import read
from hofmann import (
    AtomStyle, BondSpec, PolyhedronSpec, StructureScene,
)

traj = read("srtio3_md.traj", index=":")

bonds = [BondSpec(species=("Ti", "O"), max_length=2.5)]
polyhedra = [
    PolyhedronSpec(
        centre="Ti", colour="steelblue", alpha=0.4,
        hide_centre=True, hide_bonds=True, hide_vertices=True,
    ),
]
atom_styles = {
    "Sr": AtomStyle(radius=1.2, colour="forestgreen"),
}

scene = StructureScene.from_ase(
    traj, bond_specs=bonds, polyhedra=polyhedra,
    atom_styles=atom_styles,
)
scene.render_animation(
    "srtio3_md.gif", fps=10, dpi=100, figsize=(6, 6),
    show_axes=False, show_cell=False,
    pbc_padding=1.0,
)

Per-frame colouring

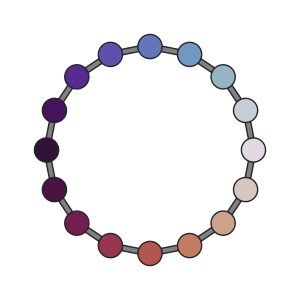

set_atom_data() accepts 2-D arrays of shape (n_frames, n_atoms) so that colourmap-based colouring can vary per frame. This is useful for visualising properties that evolve over a trajectory, such as local order parameters, coordination environments, or spatial orientation.

# angle_data has shape (n_frames, n_atoms)
scene.set_atom_data("angle", angle_data)
scene.render_animation(
    "output.gif",
    colour_by="angle", cmap="twilight",
    colour_range=(0, 360),
)

Numeric data is automatically scaled using the global range across all frames so that colours are consistent throughout the animation. Use colour_range to fix the limits explicitly. Categorical (string) data uses a global label set so that the same label always maps to the same colour.

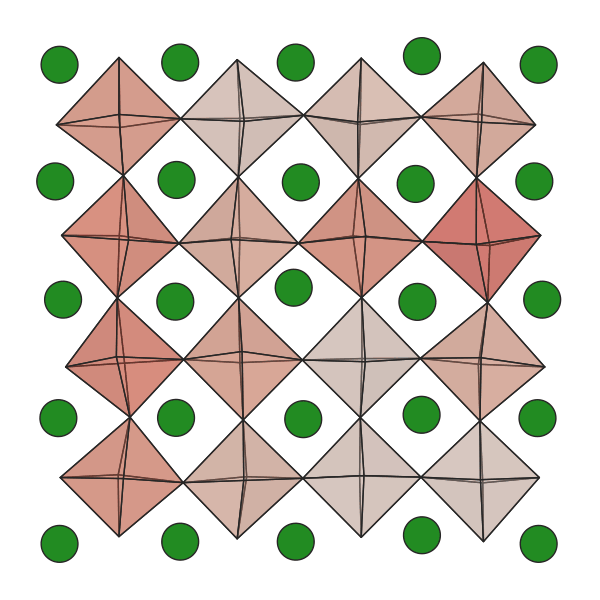

Polyhedra inherit colour_by colouring from their centre atom, so per-frame data on the centre atoms flows through to the polyhedra automatically. Here, the octahedral tilt angle of each TiO₆ polyhedron in an SrTiO₃ MD trajectory is mapped through the Reds colourmap — white for untilted, red for maximum tilt:

# tilt_data has shape (n_frames, n_atoms); NaN for non-Ti atoms.
scene.set_atom_data("tilt", tilt_data)
scene.render_animation(
    "srtio3_tilt.gif",
    colour_by="tilt", cmap="Reds",
    colour_range=(0, max_tilt),
)

Style keyword arguments

Any RenderStyle field can be passed as a keyword argument to render_animation(), just as with render_mpl():

scene.render_animation(
    "output.gif",
    show_bonds=False,
    show_polyhedra=True,
    pbc_padding=1.0,
)

Interactive trajectory viewing

Multi-frame scenes can also be explored interactively. See Interactive viewer for keyboard controls including frame navigation ([ / ], { / }), frame indicator (f), go-to-frame (g), and step size (s).
